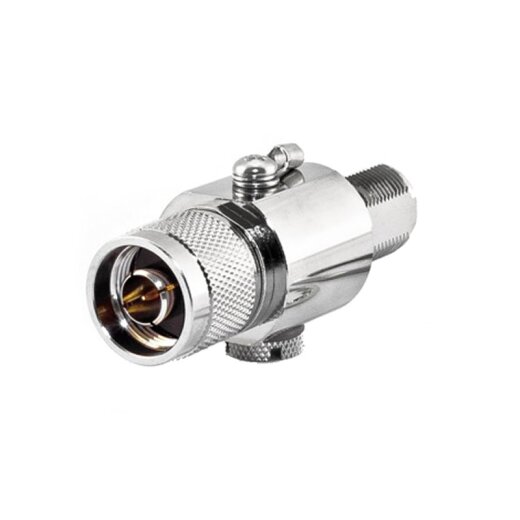

This Lightning Arrestor protects your devices against damagages caused lightning strike. It is designed for the frequency from 0 GHz to 6 GHz. It will be silpmy connected between your wifi antenne and the antennacable. It has to be grounded.
The lightning arrestor is weatherproof (IP67) and can be used for outdoor installation.
Technical Data:
| Product: |
Lightning Arrestor LP-60-13-02 |
| Frequency: |
0.000 to 6.000 MHz |
| Loss: |
1,5 dB |
| Break through voltage: |
230V DC |
| Pulse breakdown voltage: |
700V (100V/s) |
| Overvoltage protection: |
150V (100mA, 150ms) |
| max. RF power rating: |
15 Watt |
| Appliance: |
Indoor and Outdoor (IP67) |
| Connectors: |
1 x N-Male
1 x N-Female |
Shipment:
| 1 x 0-6 GHz Lightning Arrestor |
