4G multiband omni antenna with 6.5dBi gain and 5meters cable with SMA plugs black

PROSCAN LTE / 4G Omni Antenna - 6.5dBi, 2x2 MIMO, Outdoor, 5m Cable, Black

SKU: ART6186
GTIN: 4251028600864
Category: 4G Outdoor Antennas
Manufacturers: PROSCAN Antenna
HAN: MODL-6-B

This black, discreet Multiband LTE / 4G omnidirectional antenna from PROSCAN is designed for the 4G frequencies 800 MHz (4G800), 1800 MHz (4G1800), and 2600 MHz (4G2600), covering all 4G frequencies used in Germany and Europe. Therefore, you can use the 4G antenna for all providers without worrying about the frequency band your provider uses to transmit the 4G signal. With a gain of up to 6.5dBi, you can significantly enhance your 4G signal. Due to its omnidirectional characteristics, this 4G antenna does not require specific alignment.

The 4G antenna is weatherproof and can therefore be used as an outdoor 4G antenna. It is suitable for wall mounting, and the necessary mounting accessories are included in the package.

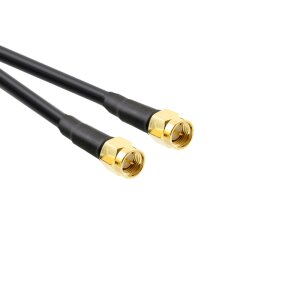

The antenna comes with 2 x 5m antenna cables with SMA connectors, allowing you to directly connect it to your 4G router (Speedport, B-Series, FritzBox, Huawei, Teltonika, etc.). If you are using a mobile router or, for example, a GigaCube router, you will need a coaxial adapter to convert to the necessary TS-9 connector format.

54,99 €

incl. 19% VAT , plus (Standard)

Choose tax zone / country of delivery

pcs

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

This Multiband 2x2 MIMO 4G omnidirectional antenna is designed for the 4G and 3G frequency bands used in Europe (800 MHz, 1800 MHz, 2100 MHz, 2600 MHz) and provides a performance gain of up to 6.5dBi. This means that this 4G antenna can be used universally for all providers and 4G data connections.

Using this 4G omnidirectional antenna will strengthen your 4G connection. This improves the connection quality and the transmission speed of your 4G connection. Thanks to the omnidirectional characteristic, this omnidirectional 4G antenna does not have to be aligned separately. The 4G antenna is particularly well suited for mobile operation as well as for use in more difficult environments, such as in cities or in hilly terrain.

The 4G antenna will directly be connected to the external antenna connector of your 4G router. With an appropriate connection adapter (CRC9 / TS9), this 4G omnidirectional antenna can also be used with a mobile 4G router / stick. If you are unsure, feel free to ask us if and how the antenna can be connected to your 4G device.

5m antenna cable with SMA connector is already attached to the 4G antenn. If your 4G router is not listed to the following list, simply check if your 4G router has two external antenna ports in SMA format.

Compatible 4G Routers with external SMA female antenna port:

Telekom Speedport LTE, Speedport LTE II
Telekom Speedbox LTE, SpeedBox LTE II, SpeedBox LTE III
Telekom Speedport Hybrid
Vodafone Easybox 904 LTE
Vodafone B1000, B2000, B3000
Vodafone LTE-Modem
Vodafone LTE-Turbobox LG FM300
O2 LTE Router
FritzBox LTE- Router
D-Link DWR-921
Huawei B390, B593, B890
Huawei E5186
Huawei B525s-23a
Teltonika RUT230, RUT240, RUT950, RUT955
...many more...

The enclosure of the 4G omni antenna is made of plastic. The robust, light weight and UV resistant construction is weatherproof. This allows to use it as a 4G outdoor. The 4G antenna is designed for wall mounting. A mounting bracket is included.

Technical Data:

Type of Antenna:	Omnidirectional 4G Antenna (2x2 MIMO)
Gain:	3.5dBi @ 800 MHz (2G, 4G) 5.5dBi @ 1800MHz (3G, 4G) 6.5dBi @ 2600MHz (4G)
Impedance:	50 Ohm
Frequency:	791-862 MHz (2G, 4G) 1700 - 2100 MHz (3G, 4G) 2500 - 2700 (4G)
VSWR:	max. 2.2
Beam Width:	360° Horizontal
Cable / Connector:	2 x 5m CDF195 Canble / SMA male
Appliance:	In- and Outdoor
Operating Temperature:	-20° to 60° C
Dimensions:	25cm (H) x 2cm (D)
Weight:	400g
Color:	Black
