The ALFA AWUS036ACHM enables extreme distances at impressive speeds with up to 150 MBit in 2.4GHz networks and up to 433MBit in 5GHz networks. The AWUS036ACHM is equipped with a USB 3.0 port. The WiFi adapter supports all known standards (IEEE 802.11a/b/g/n/ac) and is therefore fully backwards compatible with older standards.
Inheriting years of experiences in wireless industry, ALFA AWUS036ACHM is built with latest 802.11ac standards, plus high-sensitivity dual band antennas, resulting in extraordinary signal strength and coverage. No more signal dead zone in your living space when streaming HD video, downloading large files or surfing on the web.
The ALFA AWUS036AC has one external antenna connector (RP-SMA) with one detachable WiFi dual band antenna which can be simply replaced by dual band WiFi antennas of your choice. We offer various kinds of WiFi antenna which can be combined with this high gain WiFi USB adapter.
Technical Data:
| Manufacturer / Model: |
ALFA Networks / AWUS036ACHM |
| Chipset: |
MT7610U |
| Frequency Band: |
2.4 GHz
5 GHz |
| Supported WiFi Standards: |
IEEE 802.11a: 54 Mbps
IEEE 802.11b: 11 Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 150Mbps
IEEE 802.11ac: 433Mbps |
| Operating Modes: |
Infrastructure, Ad-Hoc |
| Security / Encryption: |
WEP 64/128 bit, WPA-PSK, WPA2-PSK, Cisco CCX |
| Antenna: |
1 x 5 dBi Dual Band WiFi Antenna with RP-SMA connector |
| I/O Interface: |
USB 3.0 |
| Supported OS: |
Windows XP / Vista / 7 / 8 / /10 |
RX - 2.4GHz
| MCS7 HT20/40 |
-73/-70 |
| MCS6 HT20/40 |
-75/-72 |
| MCS5 HT20/40 |
-76/-73 |
| MCS4 HT20/40 |
-79/-70 |
| MCS3 HT20/40 |
-83/-80 |
| MCS2 HT20/40 |
-86/-83 |
| MCS2 HT20/40 |
-86/-83 |
| MCS1 HT20/40 |
-87/-84 |
| MCS0 HT20/40 |
-91/-88 |
| 54M |
-76 |
| 11M |
-88 |
RX - 5GHz
| MCS9 HT20/40/80 |
-60/-57/-54 |
| MCS9 HT20/40/80 |
-60/-57/-54 |
| MCS8 HT20/40/80 |
-61/-59-56 |
| MCS7 HT20/40/80 |
-67/-64/-61 |
| MCS6 HT20/40/80 |
-68/-65/-62 |
| MCS5 HT20/40/80 |
-69/-66/-63 |
| MCS4 HT20/40/80 |
-73/-70/-67 |
| MCS4 HT20/40/80 |
-73/-70/-67 |
| MCS3 HT20/40/80 |
-77/-74/-71 |
| MCS2 HT20/40/80 |
-80/-77/-74 |
| MCS1 HT20/40/80 |
-82/-79/-76 |
| MCS0 HT20/40/80 |
-85/-82/-79 |
| 54M |
-68 |

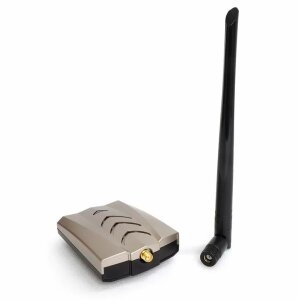

Scope of delivery:
| 1 x ALFA Networks AWUS036ACHM |
| 1 x 1m USB 3.0 Cable |
| 1 x WiFi 5dBi Omni Antenna (RP-SMA) |
| 1 x Software/Driver CD |
