BATLINK MAO5GV1 3G / 4G / 5G omni multiband antenna is designed for 698 - 3700 MHz frequency range and supports all common standards like 2G, 3G, LTE / 4G and 5G! The antenna can therefore be used universally and reliably increases the range, signal strength and transmission rate of your data connection with the performance gain of up to 9dBi. Due to the omnidirectional characteristic of the 4G / 5G antenna, it does not have to be aligned separately but can be easily installed. The BATLINK MAO5GV1 consists of two individual antennas that are mounted separately from each other.
Due to the carefully selected materials, the BATLINK MAO5GV1 is also suitable for use in shipping and defies all weather conditions. Due to the materials used (V4A and ABS plastic), this 4G / 5G antenna can also easily come into contact with salt water. The omnidirectional antenna is therefore particularly suitable for use on ships, yachts and boats, but can also be used as a classic outdoor antenna. In addition, the antenna is quite compact and has a shockproof housing.

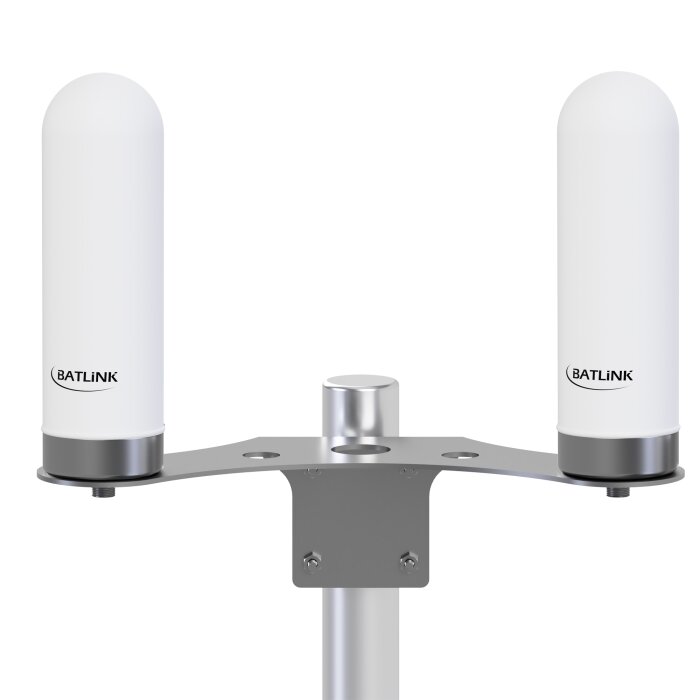

The mounting accessories include a 2x2 MIMO bracket made of V4A stainless steel and a robust V4A pipe clamp for mast mounting / antenna mounting. This allows you to decide whether to mount the antennas separately or on the MIMO bracket. Additionally, the ZH4A1 mounting system (not included) can be used to ensure full compatibility with TravelConnector mounting systems, which offer a variety of mounting options for different scenarios.
You can optionally order a suitable TWIN / dual antenna cable with N plug (suitable for the antenna) to SMA plug (suitable for almost all 4G and 5G routers). The shorter the cable, the better.
Technical Data:
| Manufacturer / Model: |
BATLINK / MAO5GV1 |
| Typ: |
Omni Antenna |
| Gain: |
6-9dBi |
| Impedance: |
50 Ohm |
| Frequency: |
698-960 MHz (2G, 3G, 4G)
1710 - 2700 MHz (3G, 4G)
3400 - 3700 MHz (5G) |
| VSWR: |
max. 1.5 |
| Beam Width (H): |
360° Horizontal |
| Beam Width (V): |
18-22° Vertical |
| Cable / Connector: |
N female |
| Appliance: |
In- and Outdoor (IP66) |
| Operating Temperature: |
-40° to 70° C |
| Dimensions: |
22.8 x 7.3 x 7.3 cm |
| Material: |
V4A and ABS-Plastic |
| Weight: |
735g |
| Color: |
White |
Scope of delivery:
| 2 x BATLINK MAO5GV1 4G / 5G Omni Antenna |
| 1 x 2x2 MIMO V4A Mounting Kit |
| 2 x V4A Mast Mounting Accessories |
| Optional: Antenna cable |
