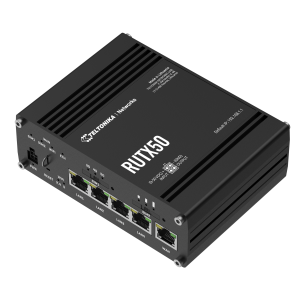

The bundle consisting of the RUTX50 and the Poynting A-MIMO-0004-V1-17 offers a powerful and reliable solution for modern networking requirements. The RUTX50 is a state-of-the-art LTE Cat 6 router equipped with dual-SIM support, gigabit Ethernet ports, and a variety of VPN options. With its robust construction and capability to operate in demanding environments, the RUTX50 ensures a constant and fast internet connection, whether in the office, at home, or on the go.

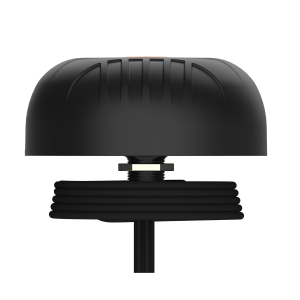

The Poynting A-MIMO-0004-V1-17 antenna is a versatile combo antenna that can amplify and receive Wi-Fi, 5G, and LTE signals. This high-performance MIMO antenna is optimized for LTE networks and provides excellent signal enhancement and wide frequency coverage. Its weather-resistant and durable design makes it suitable for both indoor and outdoor use. It maximizes network speed and stability by significantly improving the signal even in areas with weak network coverage.
Combined, the RUTX50 and the Poynting A-MIMO-0004-V1-17 offer an unbeatable package for anyone seeking a reliable and fast internet solution. This bundle is particularly well-suited for campers, RV owners, and travelers. The easy integration of the two devices ensures seamless connectivity and maximizes your network's performance, even on the move. With this bundle, you benefit from the synergy of the two products, receiving a top-tier networking solution that delivers excellent results in both urban and remote areas.
Connection Cables for Poynting MIMO-4-17
- 4 x 2m antenna cables with SMA connectors (LTE, 5G)
- 2 x 2m antenna cables with RP-SMA connectors (Wi-Fi)
- 1 x 2m antenna cable with SMA connector (GPS)
Technical Specifications Poynting / A-MIMO-0004-V1-17-B:
Manufacturer / Model: |
Poynting / A-MIMO-0004-V1-17-B |
Antenna Type: |
Omni-directional antenna |
Frequency Range 5G / LTE: |
698 - 960 MHz, 1427 -1517 MHz, 1710 - 2700 MHz, 3400 - 3800 MHz, 5000 - 6000 MHz |
Gain 5G / LTE: |
max. 6dBi |
Frequency Range Wi-Fi: |
2400-2500 MHz, 5000-7200 MHz |
Gain Wi-Fi: |
max. 6.5dBi |
Frequency Range GPS: |
1575.42 - 1600 MHz |
Gain GPS: |
21 ±2 dB |
Cables / Connectors: |
4 x 2m cables / SMA connectors (LTE) 2 x 2m cables / RP-SMA connectors (Wi-Fi) 1 x 2m cable / SMA connector (GPS) |
Impedance: |
50 Ohms |
Application Area: |
Indoor and outdoor |
IP Protection Class: |
IP 69K (except cable outlet) |
Operating Temperature: |
-40° to 80° C |
Humidity: |
up to 95% |
Dimensions: |
Ø160 mm x 65 mm |
Housing Color: |
Black |

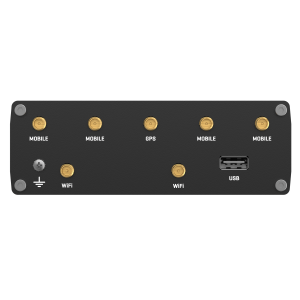

Technical Specifications Teltonika RUTX50:
Manufacturer / Model: |
Teltonika / RUTX50 |
Services: |
Router, NAT Router, Bridge |
Processor: |
Quad-core ARM Cortex A7, 717 MHz |
Memory: |
256MB, DDR3 |
FLASH Memory: |
256MB SPI Flash |
Frequency Band: |
5G SUB-6Ghz SA/NSA |
Transfer Rates 5G - 4x4 MIMO / 2x2 MIMO: |
Download SA: 2.1 Gbps Download NSA: 3.3 Gbps Upload: 900 / 600 Mbps |
Transfer Rates LTE: |
Download: 2 Gbps (CAT20) Upload: 200 Mbps |
LTE / 5G Antenna: |
4 x Omni-directional antenna (SMA) |
GPS: |
GPS, GLONASS, BeiDou, Galileo, QZSS |
Wi-Fi: |
IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11s / 802.11r |
Security: |
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
Wi-Fi Antenna: |
2 x Dual-band omni-directional antenna (RP-SMA) |
Services: |
NAT, DHCP Server/Client, Virtual Server, Port Forwarding, QOS, DMZ Host, Firewall with IP, MAC and Domain Filters, OpenVPN, PPTP, L2TP, IPsec, VRRP, GRE Tunnel, SMS Control, DynDNS, RMS support, Input Triggers, Samba Share, Load Balancer |
Interfaces: |
1 x USB 2.0 (A) |
SIM Interface: |
2 x Standard Mini-SIM card slots |
WAN Interface: |
<
td class="product_details">1 x 10/100/1000Mbps WAN/LAN port
LAN Interface: |
4 x 10/100/1000Mbps ports (Auto MDI-X, Auto-Negotiation) |
Power Supply: |
9-50V |
Power Consumption: |
max. 18W |
Application Area: |
Indoor |
E-Mark: |
Yes |
Dimensions: |
13.2 x 9.5 x 4.4 cm |
Housing: |
Aluminum |
Weight: |
533g |
Operating Environment: |
-40°C to +75° Celsius |
Humidity Range: |
10% ~ 90% non-condensing |
Scope of Delivery:
1 x Poynting MIMO-4-17 antenna, black including connection cables |
1 x set consisting of three mounting systems |
1 x Teltonika RUTX50 dual-SIM 5G router |
4 x 3dBi LTE / 5G antennas (SMA) |
2 x dual-band Wi-Fi antennas (RP-SMA) |
1 x GPS antenna (SMA) |
1 x 1m CAT5e network cable |
1 x 12V/2A EU power adapter |
1 x quick guide (English) |
