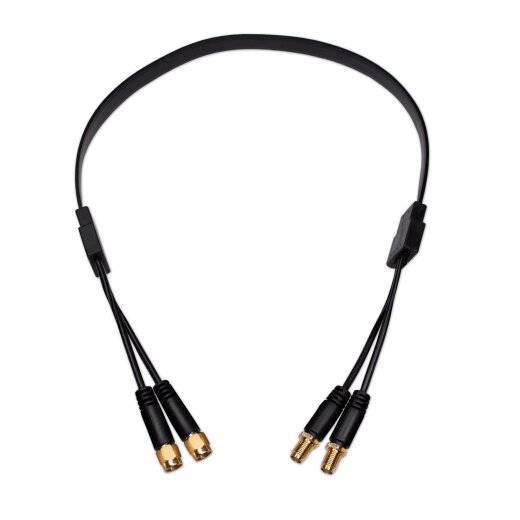

The JARFT J2250-SMA 4x4 MIMO 5G/LTE window feed-through is the perfect solution for connecting a 2x2 MIMO 5G or LTE outdoor antenna to your indoor router or access point without the need for drilling.
With a length of 50 cm and an ultra-flat design, the window cable can be easily routed through or laid inside a window frame without damaging or affecting the frame, window, or locking mechanism.
Equipped with two SMA plugs and two SMA sockets, the feed-through ensures a secure and low-loss connection between the antenna cable of your 2x2 MIMO 5G/LTE antenna and the antenna cable or directly to the antenna ports of the router or access point.
This SMA window feed-through is also available in a simpler version as well as for 4x4 MIMO in our range. Additionally, we offer this feed-through for use with WiFi antennas.
Technical Data:
| Manufacturer: |
JARFT |
| Model: |
J2250-SMA |
| Product: |
Coaxial Window Feedthrough |
| Cable Type: |
Micro Coaxial Cable 1.13 |
| Impedance: |
50 Ohms |
| Attenuation: |
~0.8dB @ 1GHz
~1.16dB @ 2GHz
1.44dB @ 3GHz
1.68dB @ 4GHz
1.88dB @ 5GHz
2.08dB @ 6GHz |
| Length: |
50cm |
| Width: |
1.0 cm |
| Height: |
1.5 mm |
| Color: |
Black |
| Connectors: |
2 x SMA Plug to 2 x SMA Socket |
Scope of Delivery:
| 1 x 5G / LTE window feedthrough for 4x4 MIMO antennas - 50cm window cable, SMA male to SMA female |
