This ultra-flat window cable/window bushing is 50 cm long and equipped with four SMA plugs and four SMA sockets. This makes the cable ideal for 4x4MIMO cellular antennas.
The cable is supplied with the SMA male to SMA female connector combination and is therefore ideal for use with UMTS, LTE or 5G antennas and antenna cables.
Technical Data:
| Manufacturer: |
JARFT |
| Model: |
J4450-SMA |
| Product: |
Coaxial Window Feedthrough |
| Cable Type: |
Micro Coaxial Cable 1.13 |
| Impedance: |
50 Ohms |
| Attenuation: |
~0.8dB @ 1GHz
~1.16dB @ 2GHz
1.44dB @ 3GHz
1.68dB @ 4GHz
1.88dB @ 5GHz
2.08dB @ 6GHz |
| Length: |
50cm |
| Width: |
1.0 cm |
| Height: |
1.5 mm |
| Color: |
Black |
| Connectors: |

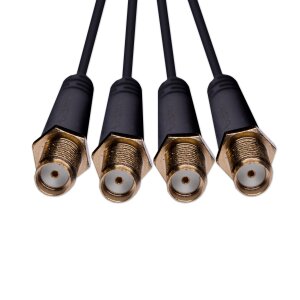

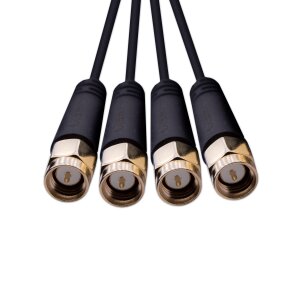

4 x SMA Plug to 4 x SMA Socket |
Scope of Delivery:
| 1 x 50cm Coaxial Antenna Flat Cable with 4 x SMA Plug to 4 x SMA Socket |
