This compact 2x2 MIMO dualband WiFi omni-directional antenna is designed for the 2.4 and 5GHz frequency band and supports all common WiFi standards within this frequency band (IEEE 802.11 a/b/g/n/ac/ax).

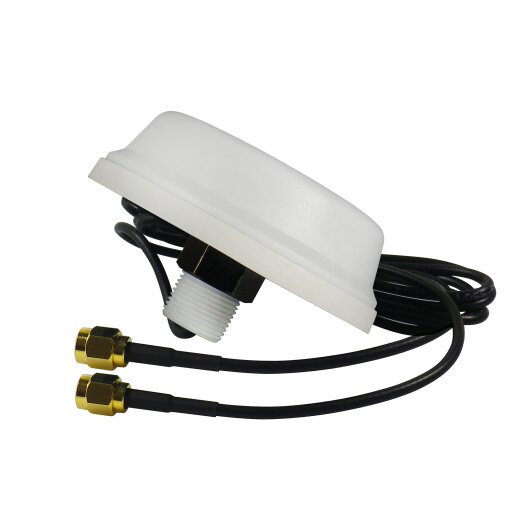

The WiFi antenna is designed for installation on ceilings, equipment cabinets, work desks, vending machines, machinery, or vehicles. The compact omni-directional antenna has a gain of 3dBi at the 2.4 GHz, 5dBi at 5 GHz frequency band and a compact, sturdy, white plastic housing (also available in black) that complies with the IP65 standard. Therefore, the antenna can be easily used outdoors as well. On the bottom of the WiFi antenna, there is a 2.5cm plastic thread with a locking nut. A rubber lip on the edge of the housing provides additional protection against moisture ingress on the object where the antenna is mounted.
The WiFi antenna comes with two 150cm cables (CLF100) and RP-SMA connectors, allowing direct connection to a WiFi device with an RP-SMA port.
Technical Specifications:
| Antenna Type: |
Omni-directional Antenna |
| Gain: |
3dBi @ 2.4GHz
5dBi @ 5GHz |
| Impedance: |
50 Ohm |
| Frequency Range: |
2.4 GHz
5 GHz
2x2 MIMO |
| VSWR: |
max. 1.7 |
| Polarization: |
Vertical (Linear) |
| Signal Radiation Angle: |
360° Horizontal
360° Vertical |
| Application: |
Indoor and Outdoor
Housing meets IP65 standard |
| Connector: |
150cm CLF100 cable with RP-SMA connector |
| Dimensions: |
4.5 x 8 x 4.5 cm |
| Weight: |
Approx. 100g |
| Color: |
Black or White |
| Operating Environment: |
-40°C to +80°C |
Scope of delivery:
| 1 x 2.4 / 5GHz WiFi Omni Antenna, 2x2 MIMO, 3/5dBi, 150cm, RP-SMA |
