The Interline HORIZON 12 Wi-Fi omni antenna is designed for the 2.4 GHz frequency band (IEEE 802.11 b/g/n) and has a gain of 12dBi. The HORIZON series antennas are one of the most famous omnidirectional antennas available on the market. Carefully constructed, perfectly suited for the base stations of high-range using a single access point.
The enclosure of the antenna is made of heavy fiberglass. The robust, light weight and UV resistant construction is weatherproof (IP64 rating) which makes the antanna usable for in- and outdoor appliances.

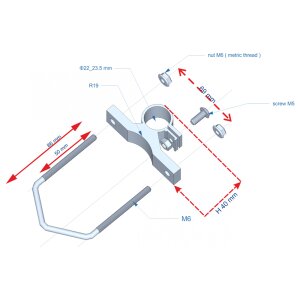

The HORIZON 12 antenna is designed for mast/pole or wall handle installation (see mounting hardware). A mounting kit (angle bracket and u-clamp for 38-51mm diameter handles) is included.
Technical Data:
| Manufacturer: |
Interline |
| Model: |
HORIZON 12 (IH-G12-F2425-V) |
| Type of Antenna: |
Omnidirectional Antenna |
| Gain: |
12dBi |
| Impedance: |
50 Ohm |
| Frequency: |
2.4 - 2.5 GHz
(IEEE 802.11 b/g/n) |
| VSWR: |
max. 2.1 |
| Polarisation: |
Vertical (Linear) |
| Beam width: |
360° Horizontal
6° Vertical
|
| Connector: |
N female |
| Appliance: |
In- and Outdoor (IP64) |
| DC-Ground: |
Yes |
| max. Windload: |
|
| Dimensions: |
113.5cm x 2.6cm |
| Weight: |
750g |
| Color: |
White |
| Operating Temperature: |
-20° to +60° C |
Scope of delivery
| 1 x Interline HORIZON 12 - WiFi 12dBi Omni Antenna |
| 1 x Mounting kit with u-clamp for 38-51mm handles |
