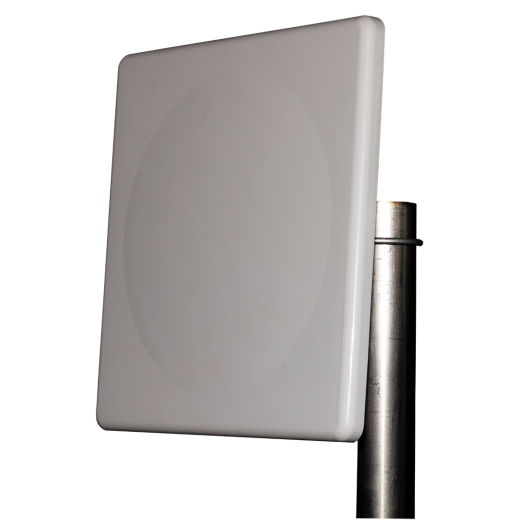

Interline PANEL 23 is one of the most powerful antenna for 5GHz band. Specially designed to support the full range of IEEE 802.11a standard. In the whole band has a good match that provides high data transfer rates and link stability even when working with dynamic channel selection. PANEL is a series of panel directional antennas, designed for installation on both the outside and inside of buildings. PANEL antenna series are constructed in microstrip technology which ensures excellent repeatability of the electrical parameters of the antenna in the production process. The modular design ensures perfect fitting what guarantee reliable performance in all weather conditions and constant high quality. Small in size, weight and aesthetic appearance makes them a discreet and elegant solution for any wireless subscriber.
It is dedicated for indoor use, warehouses, production facilities. The housing is made of ABS which is high impact resistant, also resistant to many chemicals (acids, bases, salts) that may occur in industrial plants. The back-plate is powder-coated and cured at high temperature to provide many years of trouble free operation.
It is designed for mast/pole or wall handle installation. A mounting kit (angle bracket and u-clamp for 38-51mm diameter handles) is included. The WiFi Antenna has a N female connector. Suitable coax antenna cables are available at our Webshop.
Technical Data:
| Manufacturer: |
Interline |
| Model: |
IP-G23-F5258-HV |
| Type of Antenna: |
Directional Panel Antenna |
| Gain: |
23dBi |
| Impedance: |
50 Ohm |
| Frequency: |
5000 - 5850 MHz
(IEEE802.11a/n/ac) |
| VSWR: |
1.60:1 |
| Polarisation: |
Horizontal or Vertical |
| Beam width: |
10° Horizontal
10° Vertical |
| Front to back ratio: |
> 35dB |
| XPD (Cross Polarization Discrimination): |
> 24dB |
| Cable / Connector: |
N female |
| Appliance: |
In- and Outdoor |
| IP Rating: |
IP64 |
| max. Windload: |
133N (@170km/h) |
| Dimensions: |
31.5cm x 31.5cm x 1.9cm |
| Weight: |
1120g |
| Color: |
White / Grey |
Scope of delivery
| 1 x Interline IP-G23-F5258-HV-M |
| 1 x Mounting kit with angle bracket and u-clamp for 38-51mm handles |
