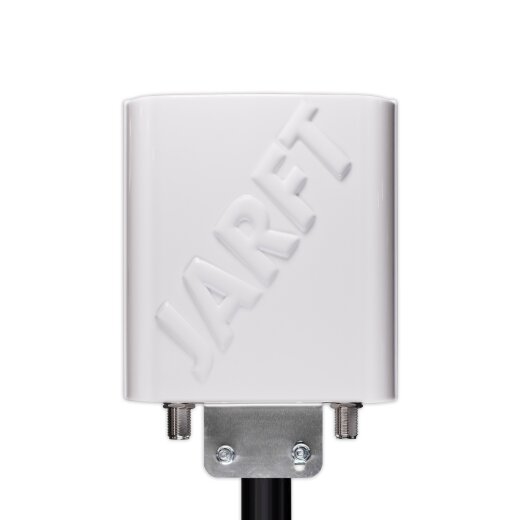

This powerful omnidirectional multiband 4G antenna is designed for 800MHz, 1800MHz, 2600MHz 4G frequency band and compatible to 4G services of various 4G providers. Using this multiband 4G antenna will improve the performance your 4G connection.
4G technology (also referred to as LTE) provides enormously high speeds of wireless data transmission. However, as is so common in wireless networks, there are areas which are not very well covered with the 4G signal by the common providers which will cause a bad 4G connection and a poor datarate. Using this high gain 4G omnidirectional antenna can solve these kinds of problems.
This 4G directional multi band antenna with its gain of up to 12dBi will help you to get a stable 4G connection. Due to the signal amplification, the signal strength, signal stability and transfer rate improves very clearly.
The enclosure of this multiband 4G antenna is manufactured from robust, weather-resistant and UV-resistant plastic / PVC. This allows to use this 4G antenna for in- and outdoor appliances even under extreme weather conditions.
The antenna is designed for mast/pole or wall handle installation. A mounting kit (u-clamp for 30-50mm diameter handles) is included.
Technical Data:
| Manufacturer: |
JARFT |
| Model: |
J4GMB-12-OMOA |
| Type of Antenna: |
Omnidirectional 4G Antenna (2x2 MIMO) |
| Gain: |
8dBi @ 800 MHz
12dBi @ 1800MHz
12dBi @ 2600MHz |
| Impedance: |
50 Ohm |
| Frequency: |
791-862 MHz (2G, 4G)
1700 - 2100 MHz (3G, 4G)
2500 - 2700 (4G) |
| VSWR: |
max. 1.8 |
| Ground: |
DC-Ground |
| Beam Width: |
360° Horizontal - 20° Vertical |
| Connector: |
2 x N female |
| Appliance: |
In- and Outdoor |
| Operating Temperature: |
-30° to 75° C |
| Dimensions: |
24.8cm (H) x 18cm (W) x 5.5 cm (D) |
| Weight: |
400g |
| Color: |
White |
Scope of delivery:
| 1 x JARFT J4GMB-12-OMOA Multiband 4G 12dBi Omni Antenna |
| 1 x Mounting accessories |
