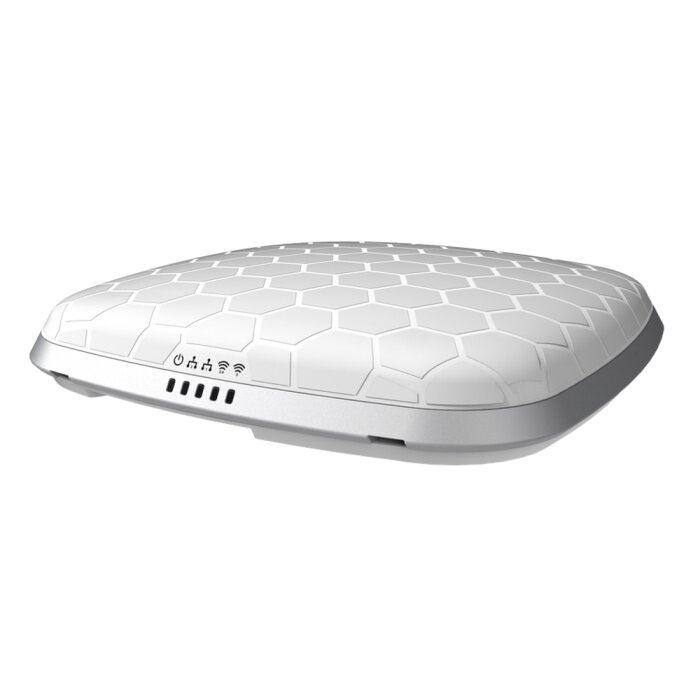

The Infinity NFT 3ac Lite is a high-performance dual-radio access point from LigoWave, equipped with two 3×3 MIMO 802.11ac radios operating in the 2.4 and 5GHz bands concurrently. A dedicated Qualcomm Atheros AR9558 CPU (720MHz) makes this AP ideal for enterprise capacity demanding applications reaching 450Mbps data rate on a 2.4GHz radio and 1300Mbps data rate on a 5GHz radio.
There are two Gigabit Ethernet ports and one of them supports 802.3af/at standard for easy and quick deployment using PoE switches
Features:
- Independent 720 MHz CPU
- Dual-radio (3x3) design with 802.11ac support
- Up to 1.750 Gbps data-rate
- Up to 22 dBm radio output power
- 5 dBi integrated omni-directional antennas
- Innovative award winning design
- 2 Gigabit Ethernet ports (802.3af/at)
- Flexible wall and ceiling mounting bracket
Infinity Controller
The Infinity Controller is an intuitive product and network management platform for your NFT devices. It allows easy, simple, and fast network installation, configuration, and control, all of which can be performed using a web browser. The Controller also facilitates network maintenance and expansion by automating these processes. The management platform can function as an integrated controller or as an external one (i.e. Infinity Cloud Controller), thus serving as an optimal solution for setting up and managing networks of any size.
Technical Data:
| Manufacturer / Product: |
LigoWave / NFT 3ac Lite |
| Frequency Band: |
2.402 - 2.482 GHz
5.150 - 5.850 GHz |
| WiFi Standards: |
IEEE 802.11a/b/g/n/ac |
| Operation modes: |
Access Point |
| Security: |
WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, User isolation, UAM (web portal authentication) |
| TX Power: |
max. 22dBm |
| TCP/IP Datarate: |
802.11ac @ 80MHz: 1300, 1170, 975, 780, 585, 390, 292.5, 195, 97.5 Mbps
802.11n @ 40MHz: 450, 405, 360, 270, 180, 135, 90, 45 Mbps
802.11a/g @ 20MHz: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11b @ 20MHz: 11, 5.5, 2, 1 Mbps |
| Radio mode: |
MIMO 3x3 |
| Channel Size: |
5, 10, 20, 40, 80 MHz |
| Modulation Scheme: |
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
802.11a/g/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11b: DSS (CCK, DQPSK, DBPSK) |
| Error Correction: |
FEC, LDPC |
| Networking Interface: |
2 x 10/100/1000 RJ-45 |
| Antennas: |
6 x internal omni WiFi antenna |
| max. Power Consumption: |
19 Watt |
| Power Input: |
802.3af/at mit passive PoE (48–56V) |
| Appliance: |
Indoor |
| Dimensions: |
191.5 mm x 191.5 mm x 35.5 mm |
| Weight: |
0.650 kg |
| Operating Temperature: |
-10°C to +55°C |
| Operating Humidity: |
0% to 90% (non-condensing) |
Scope of delivery:
| 1 x LigoWave NFT 3ac-Lite |
| 1 x 48V Gigabit PoE Injector |
| 1 x Mounting Equipment |
