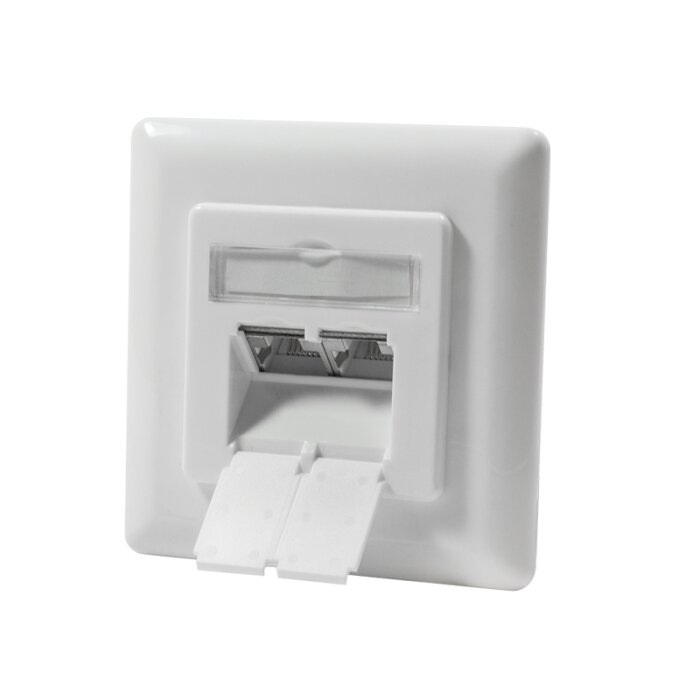

LogiLink CAT6A shielded, angled, with zinc die casting CAT.6a housing wall outlet, is ready for the transmission of digital and analogue voice, data and video up to 10 Gigabit Ethernet.
It has two separate shielded RJ45 connectors and is suited for 10/100/1000/10000 Mbps CAT.6a networks (tested according to link performance Class EA - up to 500 MHz). The LSA clamps are color coded (EIA/TIA 568 A/B) to simplify the installation of the cable wires.
The high-grade outlet is suitable for all current and future applications in CAT5E, CAT6 and CAT6A systems up to 10Gbps. The LogiLink NP0123 wall outlet is also suitable for Power over Ethernet (PoE) and new PoE+ applications.
Technical Data:
| Manufacturer / Model: |
LogiLink / NP0123 |
| Type: |
Flush-Mount Ethernet socket |
| CAT: |
CAT.6a, 500MHz |
| Connectors: |
2 x RJ45, 8P8C |
| Dimensions: |
50mm x 50mm (DIN 49075) |
| Dimensions Cover: |
80mm x 80mm |
| Color: |
Pure White |
Scope of delivery:
| 1 x CAT6a Flush-Mount Ethernet socket, 2 x RJ-45 |
