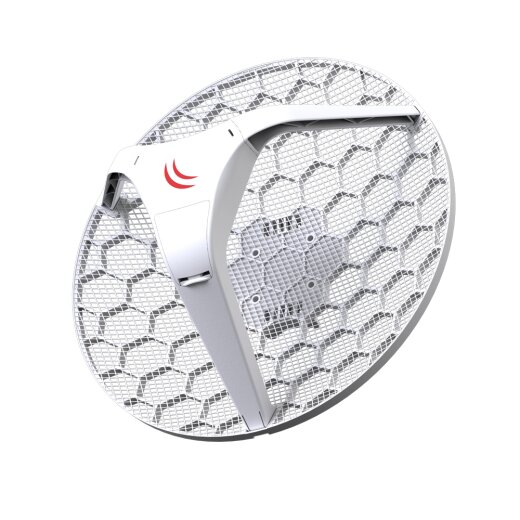

The LHG 5ac is a compact and light 802.11ac wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links on longer distances and high TCP/IP throughput.
The grid design ensures protection against wind, and the fact that the WiFi antenna element is built into the wireless unit means no loss on cables.
The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.
Its weatherproof design allows a realiable function for indoor and outdoor installations.
A RouterOS Level 3 License is included.
Technical Data:
| Manufacturer / Model: |
Mikrotik / RBLHGG-5acD |
| Processor: |
716 MHz |
| System Memory: |
256 MB |
| WiFi Frequency: |
5 GHz |
| Supported WiFi Standards: |
IEEE 802.11a
IEEE 802.11n
IEEE 802.11ac |
| Operation Modi: |
Accesspoint, Station |
| Security: |
WEP 64/128/152-bit, WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES |
| TX Power: |
max. 25dBm |
| RX Sensitivity: |
min. -96dBm |
| Ethernet Interface: |
1 x 10/100/1000 |
| Networking Modes: |
Router, Bridge |
| Antenna: |
Integrated Grid Antenna |
| Gain: |
24.5dBi |
| Antenna beam width: |
7° |
| Cross polar: |
15dBi |
| Port to port isolation: |
20 dB |
| Front to back ratio: |
25 dB |
| Return loss: |
10 dB |
| max. Power consumption: |
8 Watt |
| Power methos: |
15-30V passive PoE |
| RouterOS License: |
Level 3 |
| Appliance: |
In- / Outdoor |
| Dimensions: |
Ø 391 x 222 mm |
| Weight: |
0.560 kg |
| Operation Temperature: |
-40°C to +70°C |
| Humidity: |
5% to 95% (non-condensing) |
Scope of delivery:
| 1 x Mikrotik LHG 5ac |
| 1 x Gigabit PoE Injector |
| 1 x 24V, 0.8A Power Supply |
| 1 x Mounting Equipment |
