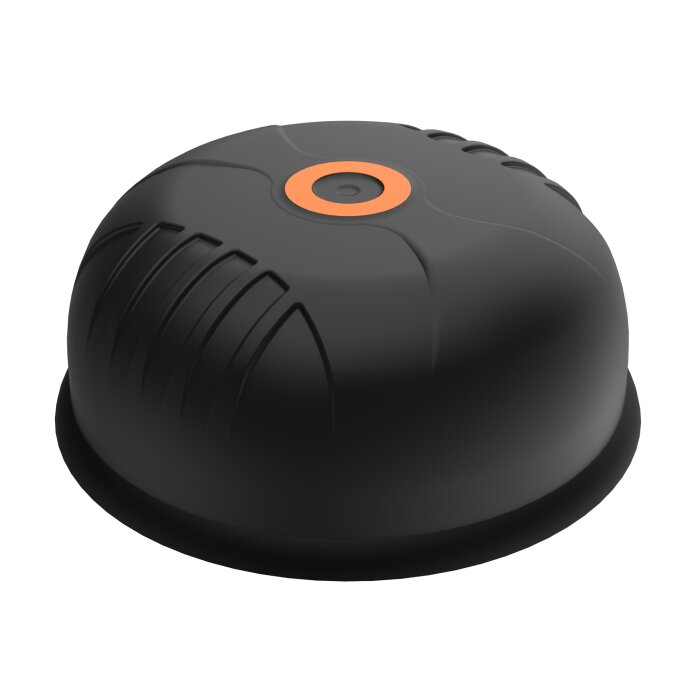

The A-MIMO-0004-V1-04-B is a 4-in-1 high performance, multi frequency antenna within a single housing. The antenna provides four cellular antenna elements. The four cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/ 4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and
technologies and is ready for future cellular technologies up to 6 GHz for 5G applications.
The MIMO-4-04 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

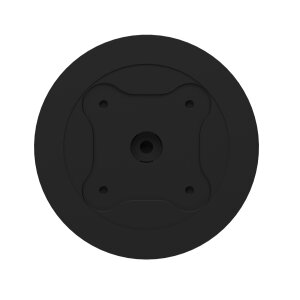

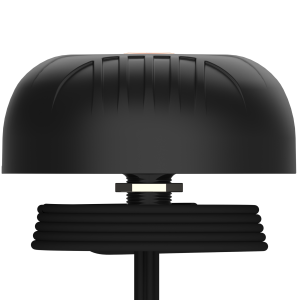

Supplied mounting systems
- Spigot Mount
- Adhesive Tape Mount
- Bracket Mount
Application Areas
- Private Vehicles, Campers, Caravans, Motorhomes
- Public Vehicles, Trucks, Tractors, Industrial Vehicles
- Installations on ceilings, equipment cabinets or machines
- M2M (Machine to Machine) and other IoT (Internet of Things) applications
Connector / Cable
- 4 x 2m RTK-031 cable - 5G/4G with SMA plug
Technical Data:
| Manufacturer / Model: |
Poynting / A-MIMO-0004-V1-04-B |
| Antenna Type: |
Omnidirectional |
| Frequency 5G / 4G: |
698 - 960 MHz, 1427 -1517 MHz, 1710 - 2700 MHz, 3400 - 3200 MHz, 5000 - 6000 MHz |
| Gain 5G / 4G: |
max. 6dBi |
| Cable / Connection: |
4 x 2m cable / SMA male (4G / 5G) |
| Impedance |
50 Ohm |
| Appliance: |
In- and Outdoor |
| IP-Rating: |
IP69K (exclude cable outlet) |
| Temperature Range: |
-40° to 80° C |
| Humidity: |
up to 95% |
| Dimensions: |
Ø160 mm x 65 mm |
| Color: |
Black |
Scope of delivery:
| Poynting MIMO-4-04 5G / 4G Antenna, Black |
| Set of mounting kits |
