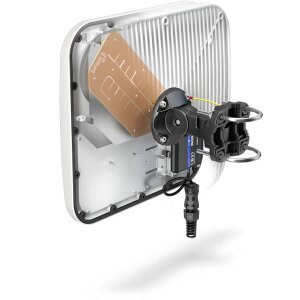

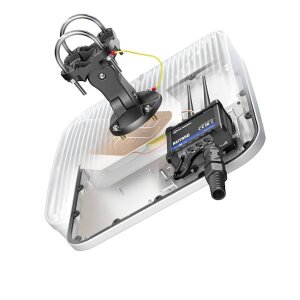

QuWireless QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT240/241/950/951/955/956/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure.
By using the QuMAX antenna, you can tease out the full performance of your 4G data connection. The integrated 7dBi directional antenna is connected directly to the antenna ports of the TELTONIKA RUT240/241/950/951/955/956/X09/X11 router. Once properly aligned, the QuMAX antenna provides a stable connection. The antenna covers all frequency ranges (LTE 800, LTE 1800, LTE 2600).
The enclosure of the QuMAX antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. This allows you to use the QuMax antenna even in extreme weather conditions.
Please note that the power supply of the TELTONIKA router needs to be done using PoE. Suitable PoE injectors and power supplies can be found in our webshop.
Technical Data - 4G:
| Type of Antenna: |
2x2 MIMO 4G Directional Antenna |
| Frequency: |
694 - 966MHz
1710 - 2200MHz
2200 - 2690MHz |
| Gain: |
7dBi
7dBi
7dBi |
| VSWR: |
max. 2.0 |
| Polarisation: |
Vertical |
| Beamwidth: |
70° Horizontal
70° Vertical |
| Impedance: |
50 Ohm |
Mechanical Data:
| Material: |
ABS, aluminum, PTFE, Fiberglass
|
| Appliance: |
Indoor / Outdoor (IP67 Rated) |
| Temperature Range (Operating): |
-40° to 75 C |
| Dimensions: |
39.2 x 29.2 x 9.9 cm |
| Weight: |
3.7 kg |
Scope of delivery:
| 1 x QuWireless QuMax XR LTE Antenna |
| 1 x Mounting Equipment |
