Maximum Power for Your Devices – The TP-Link TL-POE170S
You know the problem: you want to install a PTZ IP Camera or a modern WiFi Access Point, but there's no power outlet in sight. This is where the TP-Link TL-POE170S PoE++ Injector 60W comes in! It's your reliable partner when it comes to efficiently and easily powering high-performance devices. Thanks to the IEEE 802.3bt Standard, it delivers up to 60W PoE++ power, making it ideal for power-hungry applications like 4K IP Cameras or Wi-Fi 6 Access Points. The integrated Auto-Sensing PoE power automatically detects the power requirements of your end device and adjusts the power supply accordingly – for maximum safety and efficiency.
Simplicity Meets Efficiency: Plug & Play PoE for Your Network
Forget complicated installations and expensive electricians! The TP-Link TL-POE170S is a true Plug & Play PoE marvel. Simply connect it, and you'll supply your devices with data and power over a single Ethernet Cable. This not only saves time but also significantly reduces Network infrastructure cost reduction. With an impressive 100 meters PoE range, you can place your devices even in more remote areas where a direct power outlet is missing. The integrated power supply eliminates the need for additional power adapters and ensures a tidy setup. Thus, Network expansion without a power outlet becomes child's play.
Robust, Fast, and Versatile – Your Reliable PoE Partner
The TP-Link TL-POE170S impresses not only with its performance but also with its robustness. The durable metal housing PoE protects the sensitive technology and ensures a long lifespan, whether you use it as a wall-mount desktop PoE injector. The two Gigabit PoE Injector ports guarantee fast and stable data and power transmission Ethernet without performance losses. But this PoE Injector can do even more: it's also perfect for temporary setups at events or construction sites where laying power cables would be cumbersome. Or how about flexible power supply for LED lighting or digital signage in areas without a direct power connection? The TL-POE170S makes it possible!
Important Notes for Your TP-Link Environment
At NEONATIX, we value transparency. While the TP-Link TL-POE170S is a versatile Power over Ethernet Adapter, there's an important exception: it's not compatible with the TP-Link EAP235, EAP225, and EAP225-Outdoor WiFi Access Points. For these models, we recommend the TP-Link TL-POE160S. Also, note that the TL-POE170S is a Non-PoE to PoE converter for the network segment. This means it injects power into the Ethernet cable. However, your end device must be PoE-capable to use this power. If you want to power a completely non-PoE-capable device, you'll additionally need a PoE splitter. This ensures that your IP Cameras and other devices function optimally.
Strengths & Notes at a Glance
- Pro: High performance and versatility thanks to 60W PoE++ (IEEE 802.3bt) and backward compatibility with PoE+ and PoE.
- Pro: Easy installation and cost efficiency through Plug & Play PoE and 100 meters PoE range over a single cable.
- Pro: Gigabit speed and robust construction with durable metal housing PoE and integrated power supply.
- Note: Incompatible with TP-Link EAP235, EAP225, and EAP225-Outdoor; the TL-POE160S is recommended for these.
- Note: No integrated surge protection; additional protective measures may be required in critical environments.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | TL-POE170S |
| Product Type: | PoE++ Injector |
| PoE Standard: | IEEE 802.3bt Type 3 (60W), IEEE 802.3at, IEEE 802.3af |
| PoE Power: | Up to 60W |
| Data Rate: | 10/100/1000 Mbps (Gigabit) |

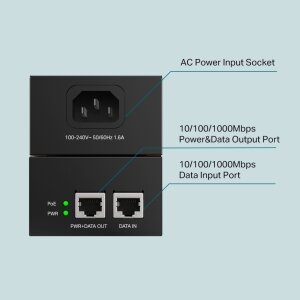

| Ports: | 1x Gigabit RJ45 Data In, 1x Gigabit RJ45 Data & Power Out |
| Transmission Distance: | Up to 100 Meters |

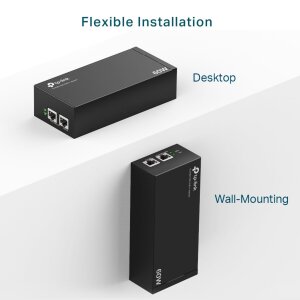

| Installation: | Plug & Play, Desktop or Wall Mount |
| Housing: | Metal Housing |
| Integrated Power Supply: | Yes |
| LED Indicators: | PWR, PoE |
| Operating Temperature: | 0°C to 45°C |
| Dimensions (W x D x H): | 150 x 70 x 42 mm |
| EAN: | 6935364073084 |
Scope of Delivery
| 1 x TP-Link TL-POE170S PoE++ Injector |
| 1 x Power Cord |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the difference between PoE, PoE+, and PoE++?
PoE (802.3af) delivers up to 15.4W, PoE+ (802.3at) up to 30W, and PoE++ (802.3bt) can provide up to 60W (Type 3) or even 90W (Type 4). The TP-Link TL-POE170S supports PoE++ Type 3 with up to 60W.
Which devices can I power with the TP-Link TL-POE170S?
You can power high-power devices such as PTZ IP Cameras, 4K IP cameras, Wi-Fi 6 Access Points, video phones, and certain LED lighting that comply with IEEE 802.3af/at/bt standards.
How far can the TP-Link TL-POE170S transmit data and power?
The injector can transmit data and power over a single Ethernet cable over a distance of up to 100 meters (328 feet).
Do I need a special configuration for the TP-Link TL-POE170S?
No, the TL-POE170S is "Plug & Play" and requires no software installation or configuration, making setup very easy.
Can I use the TL-POE170S to convert a non-PoE device into a PoE device?
The TL-POE170S converts a non-PoE network segment into a PoE-enabled one by injecting power into the Ethernet cable. However, the end device itself must be PoE-capable to utilize the injected power. For non-PoE end devices, you will additionally need a PoE splitter.
Is the TP-Link TL-POE170S suitable for outdoor use?
The TL-POE170S is designed for indoor use (operating temperature 0°C to 45°C). For outdoor applications, it would need to be installed in a weatherproof enclosure to protect it from environmental influences.
