The Travel Connector TCS-681 WiFi system is specially designed for mobile use, for example in mobile homes, caravans or caravans.
Many ports, docks and marinas, hotels and campgrounds offer either free or subscription WiFi service. The new TravelConnector WiFi system is ideal for using it from a great distance or below deck. With the TravelConnector System Set, you can surf the Internet even with a weak WiFi signal - up to 2700 meters (under optimal conditions) away from the nearest WiFi access point / hotspot!
The TravelConnector TCS-681 WiFi set consists of a very compact 2.4GHz / 5GHz dual-band 10dBi WiFi omnidirectional antenna with weatherproof IP66 housing and 5m USB cable, a matching high-performance WiFi USB adapter with MediaTek MT7610 chipset, and a 2D articulated tilt holder (other mounting systems are also available for an additional charge) and a WiFi travel router (Frontrunner VR400W) with 230V / 12V connection cable.

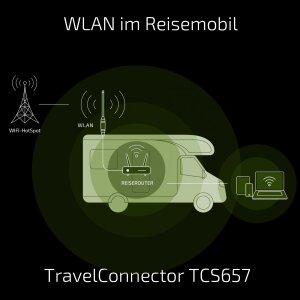

Example application with travel router on a mobile home
Large signal opening angle
The powerful 10dBi WiFi omnidirectional antenna is optimized for the frequency range from 2.4 to 5 GHz. Due to the 360° signal opening angle, the antenna does not have to be aligned. This feature is ideal for all applications where the direction of the WiFi base stations or hot spots is not known. This type of antenna is also the ideal solution for boats and yachts that cannot always maintain their position.
Clever design
The integration of an active WiFi USB adapter directly in the WiFi antenna makes a lossy antenna cable superfluous. This means that the entire transmission and reception power of the WiFi USB adapter can flow directly into the WiFi antenna without losses and increases the range of the WiFi signal many times over.
High quality processing

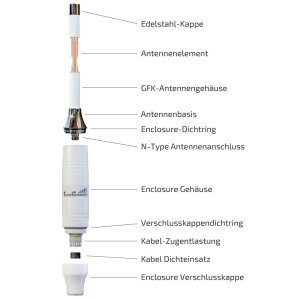

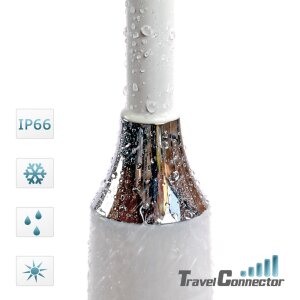

The WiFi antenna is made of stainless steel (V4A), glass fiber (GRP) and POM to withstand even the most adverse environments such as seawater. It can withstand wind speeds of up to 170 km/h and temperatures from -40C° to +80C°. Thanks to the IP66-certified plastic housing, the TravelConnector WiFi antenna is absolutely weatherproof and can also be used outdoors under extreme weather conditions.
The Travel Connector WiFi system is the solution for a stable and reliable WiFi signal on your yacht, on your sailing boat, in your mobile home, caravan or camper, whether for a single PC or optionally in combination with the WiFi travel router for multiple end devices connected to the to access the remote WiFi network.
Plug&Play
The TravelConnector TCS-681 set is connected to your PC or laptop with the USB cable immediately after the simple plug & play installation - done. The flexible USB cable is easy to lay and can be extended to a total of 40 meters without loss if required.

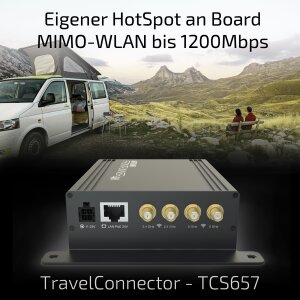

WiFi travel router - your own hotspot

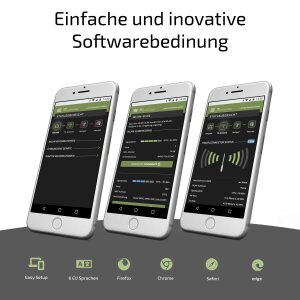

In combination with the WiFi travel router, several WiFi-enabled devices such as notebooks, smartphones, tables, IP cameras, etc. can be operated simultaneously and wirelessly. In this way, you can conveniently surf the web with multiple end devices at the same time via the existing WiFi connection of the TravelConnector. All settings are made via a web browser and can be controlled with any operating system. Driver and/or tool installation is not required. The power supply for the WiFi electronics in the antenna is provided via the USB router, which is operated with 11-24V DC voltage.
Flexible assembly
The 1 inch internal thread of the Travel Connector offers a variety of convenient mounting and mounting options. The following brackets and fastening systems are optionally available:
- 2DK - 2D Articulating Tilt Mount - Included
- 2DKM - 2D articulated tilting holder with magnet
- 3DK - 3D articulated tilt holder
- SH2D - 2D articulated tilting holder with suction cup
- MH1 - mast holder
- RH1 - railing holder for 22-30mm diameter
- RH2D - railing bracket with tilt joint
- SMH1 - Pole mount for side pole mounting
The TravelConnector WiFi TCS-681 set is the ideal solution for stationary and mobile use for PCs/notebooks. Thanks to the 360° omnidirectional characteristic, the antenna does not have to be aligned to one point. This property is excellent for use on boats/yachts or vehicles in motion. The WiFi set does not require an external power supply and can be assembled and disassembled in seconds using the quick mounts such as suction cups or magnetic mounts. This makes it the perfect travel companion - for business or pleasure, in the car, in the holiday home, on the campsite, in the mobile home, or for distant hotspots in the park.
Specifications:
| Manufacturer / Model: | Travel Connector TCS-681 |
| Antenna Type: | Omnidirectional antenna |
| Performance gain: | 2.4GHz 8dBi / 5GHz 10dbi |
| Impedance: | 50 ohms |
| Frequency range: | 2400 - 5800MHz
(IEEE802.11 a/b/g/n/ac) |
| VSWR: | max. 1.9 |
| Polarization: | Vertical (Linear) |
| Signal opening angle: | 360° horizontal
20° vertical |
| Application: | Inside and outside |
| Case Material: | Chrome-plated aluminium, GRP, POM |
| IP protection class: | IP66 |
| Connection: | N male
USB A female
USB A male |
| Cable: | 5m USB cable |
| Dimensions: | L: 46cm, D: 2.1/5cm |
| Mounting: | 1 inch thread |
| Weight: | 772g (with cable) |
| Color: | White |
| Max. Wind Speed: | 170m/s |
| Working environment temperature: | -40°C - +80°C |
Scope of delivery:
| 1 x TravelConnector TCS-681 incl. 5m USB cable |
| 1 x TravelConnector WiFi USB Adapter Tube-UAC2 with MediaTek MT7610 chipset |
| 1 x TravelConnector mounting system 2DK |
| 1 x Batlink Frontrunner travel router (VR400W) incl. 12V connection cable |
