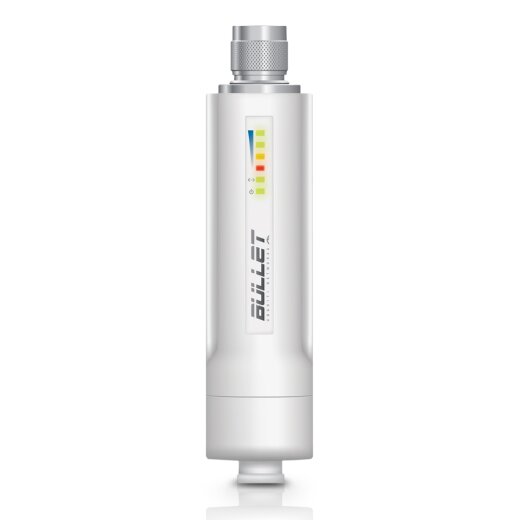

Ubiquiti Bullet M2-HP instantly transform any WiFi antenna into a 2.4 GHz carrier class radio system. Like its predecessor, Bullet M2 is a wireless radio with an integrated N male connector that can be directly plugged in to any Antenna with N female socket to create a powerful and robust outdoor Access Point, Client, or Bridge.
- No radio card / host board issues
- No RF cable quality concerns
- No mechanical stability concerns
- No enclosure mounting requirements
The Bullet M2-HP features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design.
With up to 600mW of power and enhanced receiver design, the Bullet M2 is ideal for long-distance links, capable of 100Mbps+ real TCP/IP speeds over multi-km distances.
The Bullet-M2HP can instantly become a powerful TDMA BaseStation utilizing Ubiquiti's airMax technology. With airMax, PtMP networks can scale gracefully while maintaing high throughput and low latency performance.
Passive PoE
Using PoE technology allows to transmit data stream and power / energy through the enthernet cable which integrates the Bullet-M2 to your network enviroment. There is no need to to install any extra wired power cord. The PoE Injector is NOT included. Compatible PoE Injectors are available at out webshop.
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / Bullet M2 HP |
| Processor Specs: |
Atheros MIPS 24KC, 400MHz |
| Memory Information: |
32MB SDRAM, 8MB Flash |
| Operating System: |
AirOS |
| Networking Interface: |
1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| Frequency Band: |
2.4 GHz (Standard) |
| Supported WLAN Standards: |
IEEE 802.11b: 11 Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11n: 150Mbps |
| Network modes: |
Access point, Access Point WDS, Station, Station WDS, Bride Mode, Router Mode |
| TX Power: |
28dBm> |
| RX Sensitivity: |
-min. -97dBm |
| TCP/IP Throughput: |
100Mbps+ |
| Antenna Connector: |
N-male plug (connects directly to antenna) |
| max. Power Consumption: |
7 Watt |
| Power Method: |
Passive Power over Ethernet
PoE Injector is not included! |
| Power Input: |
12V - 24V |
| Appliance: |
In- and Outdoor |
| Dimensions: |
15.2cm x 3.1cm x 3.7cm |
| Weight: |
0.18 kg |
| Operating Temperature: |
-40°C to +80°C |
| Operating Humidity: |
5 to 95% non condensing |
Scope of delivery:
| 1 x Ubiquiti 2.4 GHz Bullet M2-HP |
