Advanced Switching Technology for the Masses! Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products.

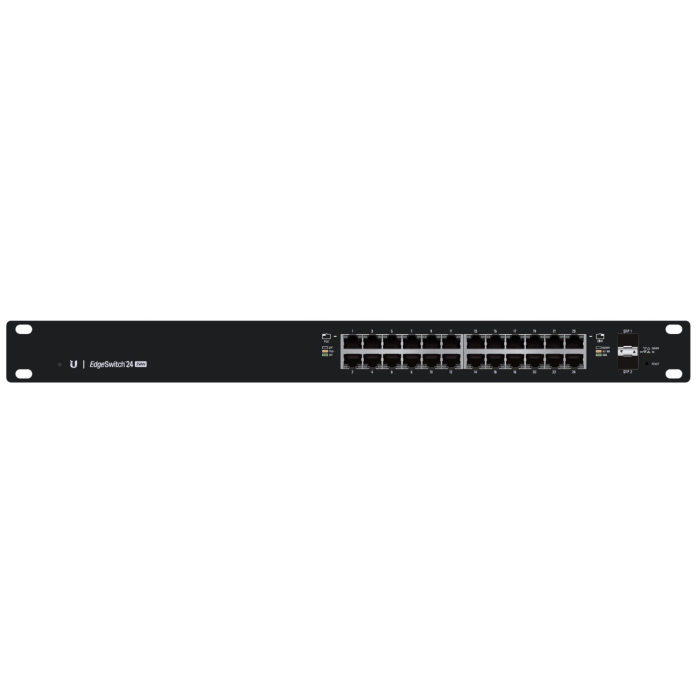

The EdgeSwitch24 is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch-24 offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The Edge-Switch24 offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port models support up to 26 Gbps.
PoE+ Flexibility
The EdgeSwitch models are available with 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry - standard command-line interface (CLI) is available through telnet and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
- MSTP/RSTP/STP
- VLAN, Private VLAN, Voice VLAN
- Link Aggregation
- DHCP Snooping, IGMP Snooping
- TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
- DiffServ, CoS
- Static Routing, Policy-Based Routing
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / EdgeSwitch24-250W |
| Ethernet Interfaces: |
24 x 10/100/1000Mbps Gigabit Ethernet Port
2 x 10/100/1000Mbps Gigabit SFP Port
Auto MDI-X, Auto-Negotiation |
| PoE Interfaces: |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-),
24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| PoE Capacity: |
max. 250W |
| Management Interface: |
Ethernet In/Out Band |
| Total Non-Blocking Throughput: |
26 Gbps |
| Switching Capacity: |
52 Gbps |
| Forwarding Rate: |
38.69 Mpps |
| Power Supply: |
100-240VAC/50-60 Hz, Universal Input |
| Power Input: |
110-240VAC |
| max. Power Consumption: |
250W |
| Rackmount: |
Yes, 1HU |
| Dimensions: |
485.04 x 44.45 x 285.6 mm |
| Weight: |
3,7 kg |
| Operating Temperature: |
-5°C to +40°C |
| Humidity: |
5 - 95% non-condensing |
Scope of delivery:
| 1 x Ubiquiti EdgeSwitch24-250W |
| 1 x PowerCord |
| 1 x Mounting Screws / Cage Nuts |
