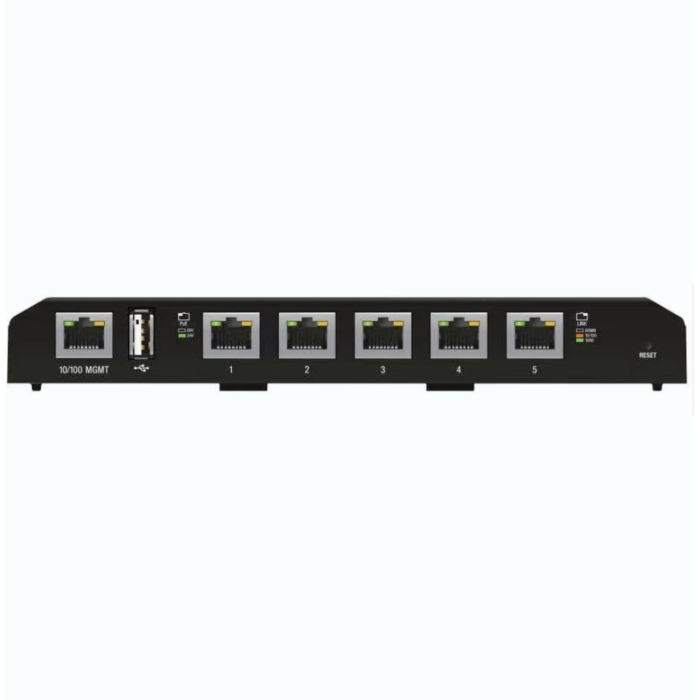

Ubiquiti EdgeSwitch 5XP / ES-5XP is a cost effective, 5-port Gigabit switch with optional 24V PoE support. EdgeSwitch 5XP delivers reliable and fast 10/100/1000 Mbps connectivity to attached devices and a reliable passive 24V PoE function.
Using the PoE function of the EdgeSwitch 5XP is quite simple. Just enable PoE function for specific or all ethernet potrs through the easy-to-use EdgeSwitch Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.
EdgeSwitch provides a user friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the EdgeSwitch Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / ES-5XP |
| Processor: |
MIPS24K 400 MHz |
| System Memory: |
64 MB |
| Transferrates: |
10/100/1000 Mbps |
| Data Port: |
5 x 10/100/1000 MBit - RJ45 |
| Management Port: |
1 x 10/100 MBit - RJ45 |
| USB Port: |
1 x USB 2.0 Port Typ-A |
| ESD Rating: |
24 kV Air / 24 kV Contact |
| PoE Methode: |
Passive |
| PoE-Out Voltage: |
22 - 24VDC |
| Max. PoE Power / Port: |
11.5W |
| Power Input: |
24VDC, 2.5A Power Adapter |
| max. Power Consumption: |
60 Watt |
| Dimensions: |
19.7 x 8.75 x 2.73cm |
| Weight: |
250g |
| Operating Temperature: |
-25°C - +55°C |
| Operating Humidity: |
5% - 95% non condensing |
Scope of delivery:
| 1 x Ubiquiti EdgeSwitch 5XP / ES-5XP |
| 1 x EU Power Supply |
