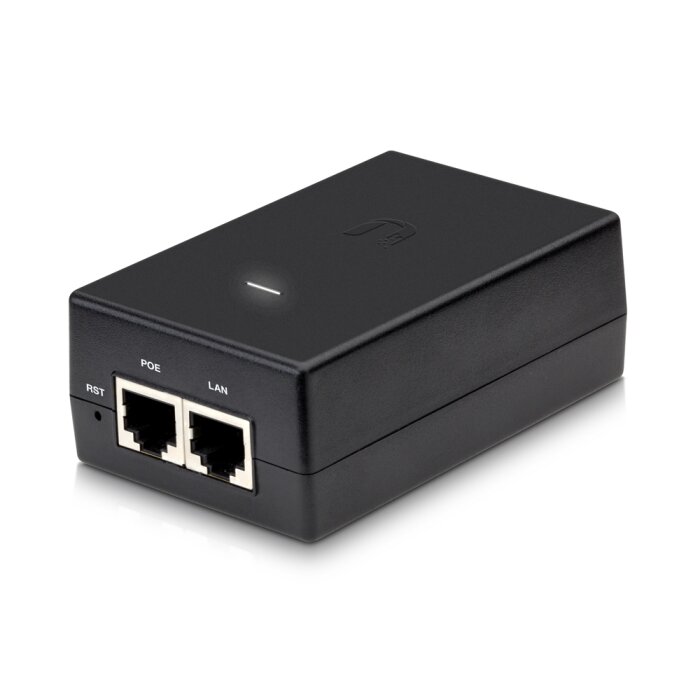

Ubiquiti POE-24-24W is a passive PoE Injector (Power over Ethernet) with output voltage of 24V, 1A (24 Watt.)
Ubiquiti PoE Adapters provide a variety of features to help protect your Ubiquiti PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Technical Data:
| Manufacturer / Model: |
Ubiquiti Networks / POE-24-24W |
| Gigabit LAN Port: |
No |
| Remote Reset Capability : |
Yes |
| Reset Button: |
Yes |
| Data In / PoE Port: |
RJ45 Shielded Socket |
| Input Voltage: |
90-260VAC @47-63Hz |
| Output Voltage: |
24VDC @ 1A |
| Effiiciency: |
80% + |
| Output Ripple: |
1% Max |
| Switching Frequency: |
65 kHz |
| Line Regulation: |
+/- 1% |
| Load Regulation: |
+/- 3% |
| Dimensions: |
8.8 x 5.7 x 3.3cm |
| Weight: |
0.135 kg |
| Operating Temperature: |
0°C to +40° C |
Scope of delivery:
| 1 x Ubiquiti POE-24-24W, 24V / 1A |
| 1 x Power Cord |
