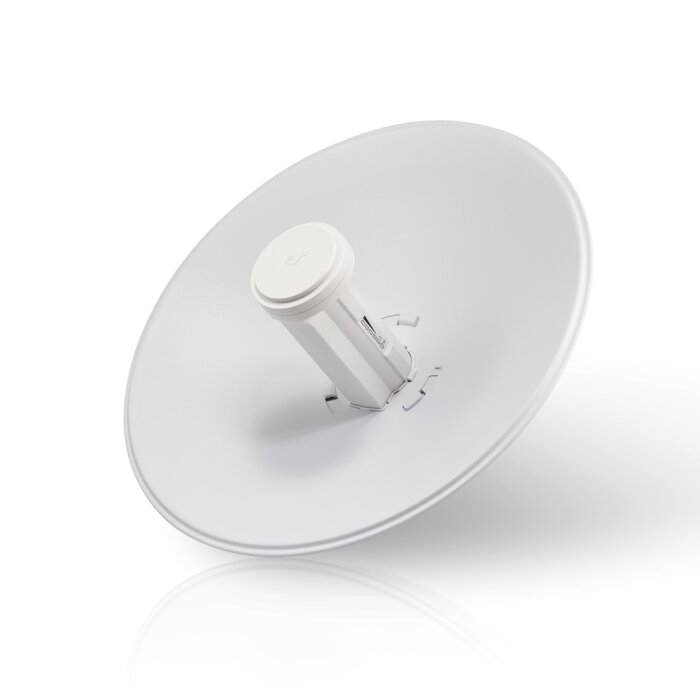

Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam™.
Improved Noise Immunity
The PowerBeam M5-300 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam M5-300 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the PowerBeam M5-300 is extremely versatile and cost effective to deploy.
Passive PoE
Using PoE technology allows to transmit data stream and power / energy through the enthernet cable which integrates the PowerBeam M5 300 to your network enviroment. There is no need to to install any extra wired power cord. A 24V, 0.5A PoE Injector is included.
airMAX Technology Included
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class
Robust outdoor design
The mechanical design of the PowerBeam M5 300 provides weatherproof performance. Acitivity and signal strength LED's provided for installers. Enhanced RF and Ethernet ESD/Surge protection enables prolonged operation in harshest environments. The PowerBeam M5 300 is designed for mast or pole installation.
AirOS Software
AirOS is the intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training operate. Behind the user webinterface is a powerful firmware architecture which enables hi-performance networking. Additionally, the AirControl application allows operators to centrally manage 100's of devices.
Long Distance and TCP/IP Throughput
The PowerBeam M5 300 is capable of high speed, carrier-class links up to 20km with real TCP/IP throughput of 150Mbps+.
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / PowerBeam M5-300 |
| Processor Specs: |
Atheros MIPS 74KC, 560 MHz |
| Memory Information: |
64MB SDRAM, 8MB Flash |
| Operating System: |
AirOS |
| Networking Interface: |
1 x 10/100 BASE-TX (Cat. 5, RJ-45) |
| Frequency Band: |
Worldwide: 5170 - 5875 MHz
USA: 5725 - 5850 MHz |
| Supported Standards: |
IEEE 802.11a: 54MBit
IEEE 802.11n: 300MBit |
| TX Power: |
max. 26dBm |
| RX Sensitivity: |
min. -94dBm |
| TCP/IP Throughput: |
150Mbps+ |
| Range: |
up to 20km+ |
| Antenna: |
22dBi Dual-Linear Backfire Antenna |
| max. Power Consumption: |
6 Watt |
| Power Method: |
Passive Power over Ethernet
PoE Injector is included! |
| Power Input: |
12V - 24V (12 Watt) |
| ESD/EMP Protection: |
24KV radio frequency and ethernet electrostatic discharge (ESD) protection. |
| Dimensions: |
32.cm Diameter |
| Weight: |
1.203 kg |
| max. Wind Load |
200.2 N @ 200 km/h |
| Operating Temperature: |
-40°C to +70°C |
| Operating Humidity: |
5 to 95% non condensing |
| Shock and Vibration:: |
IEC 68-2-6, IEC 68-2-14 |
Scope of delivery:
| 1 x UBNT PowerBeam M5 300 |
| 1 x 24V/0.5A - PoE Injector |
| 1 x Mounting Kit |
