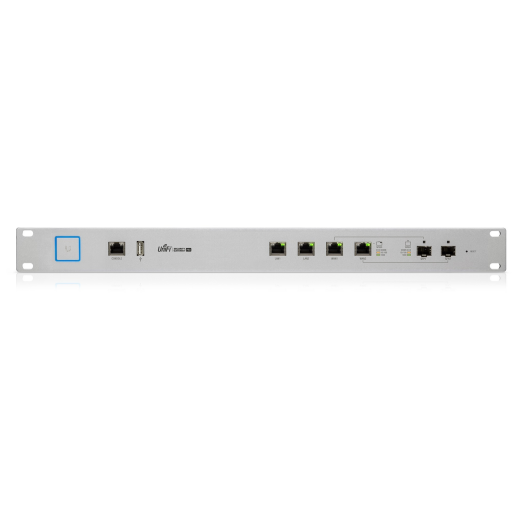

Ubiquiti Networks introduces the UniFi Security Gateway PRO / USG-PRO-4, which extends the UniFi Enterprise System to encompass routing and security for your network. It combines reliable security features with high performance routing technology in a cost-effective unit. USG-PRO-4 has a Rack-mountable form factor with fiber connectivity options and a dual-core, 1 GHz processor for maximum hardware-accelerated performance.
Powerful Firewall Performance
The UniFi Security Gateway offers advanced firewall policies to protect your network and its data.
Convenient VLAN Support
The UniFi Security Gateway can create virtual network segments for security and network traffic management.
VPN Server for Secure Communications
A site-to-site VPN secures and encrypts private data communications traveling over the Internet.
QoS for Enterprise VoIP and Video
Top QoS priority is assigned to voice and video traffic for clear calls and lag-free, video streaming. The UniFi Security Gateway is deployed in the same manner as UniFi Access Points for wireless networking. Use the intuitive UniFi Controller to conduct device detection, provisioning, and management.
Additional features include
The USG-PRO-4 offers optional SFP ports for fiber connectivity to support backhaul applications:
- 2 x 10/100/1000 RJ45 Ports
- 2 x 10/100/1000 RJ45/SFP Combination Ports
- 1 x RJ45 Serial Console Port
- Rack-Mounting Capability
- Layer 3 Forwarding Performance
- Packet Size of 64 Bytes: 2,400,000 pps
- Packet Size of 512 Bytes or Larger: 4 Gbps (Line Rate)
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / UniFi Security Gateway PRO |
| Processor: |
Dual-Core 1 GHz, MIPS64 |
| RAM: |
2GB DDR3 RAM |
| On-Board Flash Storage: |
4GB |
| LAN Interface: |
2 x 10/100/1000 RJ45 Ports
2 x 10/100/1000 RJ45/SFP Combination Ports |
| Serial Console Port: |
1 x RJ45 Serial Port |
| Layer 3 Packet Size - 64 Bytes: |
2,400,000 pps |
| Layer 3 Packet Size - 512 Bytes or Larger: |
4 Gbps (Line Rate) |
| Appliance: |
Indoor |
| max. Power consumtion: |
40W |
| Dimensions: |
48.4 x 4.4 x 16.4 cm |
| Rackmount: |
Yes, 19 Inch, 1HU |
| Weight: |
2.3kg |
| Operating Temperature: |
-10°C - 45°C |
Scope of delivery:
| 1 x Ubiquiti UniFi Security Gateway PRO / USG-PRO-4 |
| 1 x EU Power Supply |
