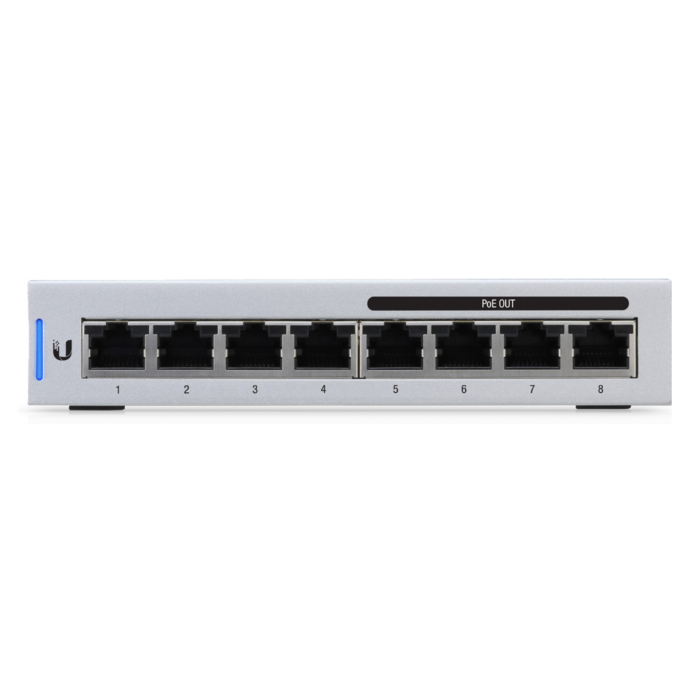

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The new 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks. The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The US-8-60W is powered by its included power adapter. It has four auto-sensing PoE ports delivering up to 15.4W of power per port.
UniFi Controller
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface. There is no separate software, licensing, or support fee.
Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:
- PoE setting per port
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
Network settings
Switch Port Status You can also view status information for each port:
- Connection speed and duplex mode
- TX/RX data rates
- PoE status
- Network/VLAN setting
Technical Data:
| Manufacturer / Product: |
Ubiquiti Networks / UniFi Switch 8-60W |
| Ethernet Interfaces: |
8 x 10/100/1000Mbps Gigabit Ethernet Port
Auto MDI-X, Auto-Negotiation |
| PoE Interfaces: |
4 x Ports 5, 6, 7, 8; IEEE802.3af (only 48V) |
| PoE Capacity: |
max. 60W |
| Total Non-Blocking Throughput: |
8 Gbps |
| Switching Capacity: |
20 Gbps |
| Forwarding Rate: |
11.9 Mpps |
| Power Supply: |
External AC/DC Adapter, 48V, 1.25A |
| max. Power Consumption: |
60W with PoE
12W without PoE |
| Rackmount: |
No |
| Dimensions: |
148 x 99.5 x 30.7mm |
| Weight: |
432g |
| Operating Temperature: |
-5°C to +40°C |
| Humidity: |
5 - 95% non-condensing |
Scope of delivery:
| 1 x Ubiquiti UniFi Switch 8, 60W |
| 1 x EU Power Supply |
