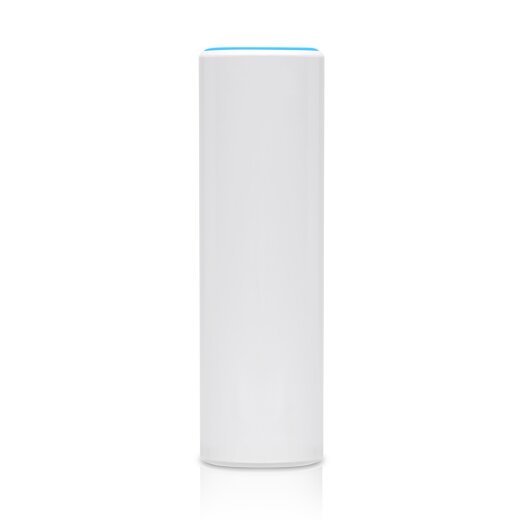

The Ubiquiti UAP FlexHD brings Wave2 speeds in a compact design for indoor and outdoor use. Four integrated WiFi antennas allow 4x4 MU-MIMO with a combined data rate of 2033 Mbps in both frequency bands. The UAP FlexHD has a maximum data rate of 2033 Mbps in both frequency bands.
Use the UAP FlexHD for environments with a high WiFi network density to set up a high-performance network. Thanks to the scalability of the UniFi system, you can set up a WiFi network of any size. Start with a UniFi access point and, if necessary, expand further with additional UniFi AP's.
The UniFi AP Flex HD can easily be used indoors and outdoors. Thanks to flexible mounting options, the FlexHD can be mounted on table tops as well as on walls, masts and ceilings (optional accessories required).
UniFi Controller
Use the UniFi controller to centrally configure and control any number of UniFi access points, map your WiFi networks, manage network traffic or integrate new UniFi access points into your network. Using a UniFi controller, several sites can be managed and controlled at different locations. The sites are managed separately from each other so that you have the best possible overview.
Technical Data:
| Manufacturer / model: |
Ubiquiti Networks / UniFi AP FlexHD |
| Network Interface: |

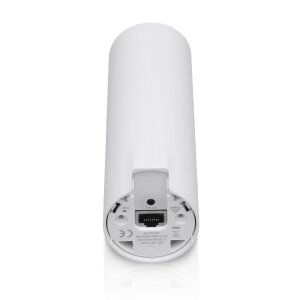

1 x 10/100/1000 Ethernet Port |
| WiFi frequency band: |
2.4 GHz: 300 Mbps
5 GHz: 1733 Mbps |
| WiFi Standards: |
802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Beamforming: |
Supported |
| Power saving mode: |
Supported |
| TX transmission power: |
2.4 GHz: 23 dBm
5 GHz: 26 dBm |
| MIMO: |
2.4 GHz: 2x2
5 GHz: 4x4 |
| Antenna: |
2.4 GHz: 2 x 1.6dBi
5 GHz: 4 x 4dBi |
| WiFi Security: |
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| max. Power Consumption: |
10.5W |
| Power Supply: |
48V PoE - 802.3af/803.2at (Supported Voltage Range: 44 to 57VDC) |
| Dimensions: |
4.85 x 4.85 x 15.94 cm |
| Weight: |
315g |
| Button: |
Reset |
| Field of use: |
Indoor / Outdoor |
| Operating Temperatur: |
-30°C to 70°C |
| Humidity: |
5 - 95% not condensing |
| Certificates: |
CE, FCC, IC |
Scope of Delivery:
| 1 x Ubiquiti UniFi FlexHD (UAP-nanoHD) |
| 1 x 48V, 0.5A Gigabit PoE Adapter |
| 1 x Mounting Set |
