Design Meets Function: The Invisible Network Professional
No more bulky Network devices and visible cable clutter. The Ubiquiti U6 In-Wall was developed for in-wall mounting in a standard wall box. It replaces a conventional Network socket and, with its flat, professional design, integrates absolutely seamlessly into your environment. Whether in the conference room, hotel room, or home living room – you get maximum performance without disturbing the aesthetics of the room. Installation is extremely simple, and the result is a clean, tidy setup.
Two Devices in One: Your Access Point with Integrated Switch
Why install two devices when one can do it all? The U6 In-Wall is not only a powerful WiFi Access Point but also a full-fledged 4-Port Gigabit PoE Switch. This makes it the best Access Point for the home office desk or media corner. Connect your PC, printer, smart TV, or gaming console directly via cable for the most stable connection, while simultaneously providing the entire room with high-speed WiFi. One port even offers PoE-Passthrough to power a VoIP phone or an IP Camera – maximum flexibility in one place.
Built for Demanding Environments with Wi-Fi 6
The U6 In-Wall is designed for high density and demanding tasks. Thanks to Wi-Fi 6 (802.11ax) technology with 4x4 MU-MIMO in the 5 GHz band, it achieves an impressive data throughput of up to 4.8 Gbit/s. It can effortlessly serve over 300 clients simultaneously, making it perfect for offices, event venues, or the modern Smart Home. Features like Band Steering and Fast Roaming (802.11r/k/v) ensure that your devices are always optimally connected, even when you move through the building.
Strengths & Notes at a Glance
- Pro: Extremely discrete and professional design through in-wall mounting.
- Pro: Combined functionality as an Access Point and 4-port Switch reduces complexity and cable clutter.
- Pro: Powerful Wi-Fi 6 with 4x4 MU-MIMO, ideal for high-density device environments.
- Pro: Flexible PoE-Passthrough for powering another device such as a VoIP phone or IP Camera.
- Note: Coverage is primarily focused on the installation room; performance through solid walls may be reduced.
- Note: For the use of the PoE output, Power Supply to the Access Point via PoE+ (802.3at) is absolutely necessary.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi U6 In-Wall (U6-IW) |
| HAN/MPN: | U6-IW |
| EAN: | 0810010077493 |
| Device Type: | WiFi Access Point with integrated 4-Port Gigabit PoE Switch |
| Mechanical Properties | |
| Dimensions (H x W x D): | 139.7 x 96 x 31.2 mm |
| Weight: | 460 g |
| Housing Material: | Polycarbonate, Aluminum |
| Mounting Material: | Aluminum |
| Mounting Type: | Wall mounting (in-wall, for 1-gang box) |
| Hardware & Performance | |
| Network Interfaces (Uplink): | (1) 1x GbE RJ45 Port (Data-In, rear) |

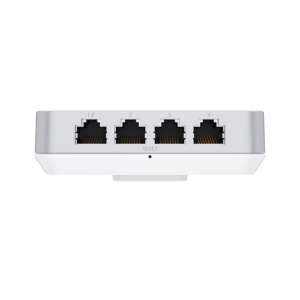

| Network Interfaces (Switch): | (4) 4x GbE RJ45 Ports (Data-Out, bottom) |
| Management Interfaces: | Ethernet, Bluetooth |
| Power Supply Method: | PoE (Power over Ethernet) |
| Supported Voltage Range: | 44–57 V DC |
| Max. Power Consumption: | 13.5 W (without PoE-Out) |
| PoE Input: | PoE/PoE+ (802.3af/at) |
| PoE Output: | (1) Port 1 supports PoE-Passthrough (802.3af) |
| Prerequisite for PoE-Out: | Supply via PoE+ (802.3at) required |
| Max. PoE Power per Port (PSE): | 15.4 W |
| LED Indicator: | System Status (White/Blue) |
| Button: | Factory Reset |
| Operating Temperature: | -30°C to 60°C |
| Operating Humidity: | 5 to 95 % non-condensing |
| Certifications: | CE, FCC, IC |
| WiFi Specifications | |
| WiFi Standard: | Wi-Fi 6 (802.11ax) |
| Backward Compatibility: | 802.11a/b/g/n/ac |
| Frequency Bands: | 2.4 GHz / 5 GHz (Dual-Band) |
| MIMO (5 GHz): | 4x4 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz): | 2x2 (UL MU-MIMO) |
| Spatial Streams: | 6 |
| Max. Data Rate (5 GHz): | 4.8 Gbit/s |
| Max. Data Rate (2.4 GHz): | 573.5 Mbit/s |
| Aggregated Data Rate: | approx. 5.3 Gbit/s |
| Antenna Gain (5 GHz): | 5.9 dBi |
| Antenna Gain (2.4 GHz): | 5 dBi |
| Max. Transmit Power (5 GHz): | 26 dBm |
| Max. Transmit Power (2.4 GHz): | 22 dBm |
| Supported Channel Bandwidth: | 20/40/80/160 MHz |
| Recommended Range/Coverage: | approx. 115 m² (for one room) |
| Number of Concurrent Clients: | 300+ |
| BSSIDs: | 8 per radio module |
| Software & Network Management | |
| Wireless Security: | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| VLAN: | 802.1Q |
| Advanced QoS: | Per-User Rate Limiting |
| Guest Traffic Isolation: | Supported |
| Roaming: | 802.11r/k/v (Fast Roaming) |
| Further Features: | Wireless Meshing, Band Steering, Captive Portal, PPSK |
| Management Software: | UniFi Network Controller (Version 6.0.45 or newer) |

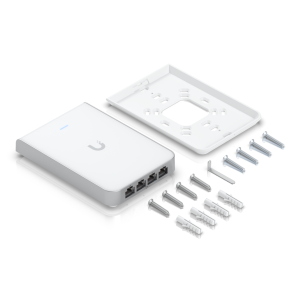

Scope of Delivery
| 1 x Ubiquiti UniFi U6 In-Wall (U6-IW) |
| 1 x Mounting material for in-wall box |
Frequently Asked Questions (FAQ)
Do I need a special PoE Injectors / Power Supplies for the Ubiquiti U6 In-Wall?
Yes, for full functionality, a PoE+ (802.3at) Ethernet Switch is recommended. While the UniFi Access Point also works with standard PoE (802.3af), PoE+ is essential if you want to use the PoE output to power another device like a phone or an IP Camera.
How complicated is the installation of the U6-IW?
Installation is straightforward for individuals with basic Network knowledge. It replaces an existing Ethernet Outlets. The device clicks onto the Mounting Systems in the wall. If a network outlet is already present, new Cabling is usually not required.
Can the U6 In-Wall provide WiFi coverage for an entire house?
No, it is not primarily designed for that. Its strength lies in targeted and powerful coverage of a single room. For comprehensive coverage of an entire house, multiple WiFi Access Points, such as ceiling models in combination with in-wall models, should be planned.
What is the advantage of the integrated Ethernet Switch?
The integrated 4-port Ethernet Switch provides wired Network connections on the spot. This is ideal for a workstation or media corner where devices like PCs, printers, game consoles, or smart TVs require a stable wired connection, eliminating the need for an additional Ethernet Switch.
Can I operate the U6-IW without a UniFi Controller?
No, the UniFi Network Application (controller software) is mandatory for configuring and managing the UniFi Access Point U6 In-Wall. This can run on a PC, server, or dedicated Ubiquiti Networks hardware like a Cloud Key or a UniFi Dream Machine.
Is the U6 In-Wall suitable for outdoor use?
No, the device is designed exclusively for indoor use and is not weatherproof. It is not protected against moisture or dust, even though it has a wide operating temperature range.
