This compact WiFi omni-directional antenna is designed for the 2.4 GHz frequency band and supports all common WiFi standards within this frequency band (IEEE802.11 b/g/n).
The WiFi antenna is designed for installation on ceilings, equipment cabinets, work desks, vending machines, machinery, or vehicles. The compact omni-directional antenna has a gain of 5dBi in the 2.4 GHz frequency band and a compact, sturdy, black plastic housing (also available in white) that complies with the IP65 standard. Therefore, the antenna can be easily used outdoors as well. On the bottom of the WiFi antenna, there is a 2.5cm plastic thread with a locking nut. A rubber lip on the edge of the housing provides additional protection against moisture ingress on the object where the antenna is mounted.
The WiFi antenna comes with a 150cm cable (CLF100) and RP-SMA connector, allowing direct connection to a WiFi device with an RP-SMA port.
Technical Specifications:
| Antenna Type: |
Omni-directional Antenna |
| Gain: |
5dBi |
| Impedance: |
50 Ohm |
| Frequency Range: |
2.4 GHz
(IEEE802.11b/g/n) |
| VSWR: |
max. 1.8 |
| Polarization: |
Vertical (Linear) |

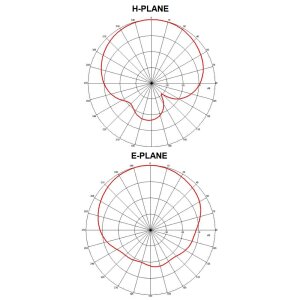

| Signal Radiation Angle: |
360° Horizontal
360° Vertical |
| Application: |
Indoor and Outdoor
Housing meets IP65 standard |
| Connector: |
150cm CLF100 cable with RP-SMA connector |

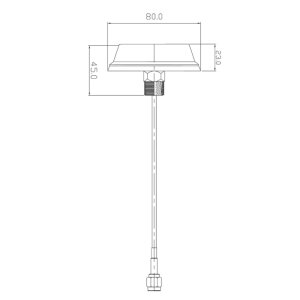

| Dimensions: |
4.5 x 8 x 4.5 cm |
| Weight: |
Approx. 100g |
| Color: |
Black |
| Operating Environment: |
-40°C to +80°C |
Scope of delivery:
| 1 x 2.4GHz WiFi Omni Antenna, 5dBi, 150cm, RP-SMA |
